Final Boards

Initial Renderings

Student Lounge Area (below)

9th grade Studio (below)

Art Lab (below)

bike rack (below)

Bus Stop and Front entrance of the School  (below)

Collaborative Group Area  (below)

View from the Driveway  (below)

View from the balcony  (below)

Overview of the Site  (below)

Overview of the interior of the building

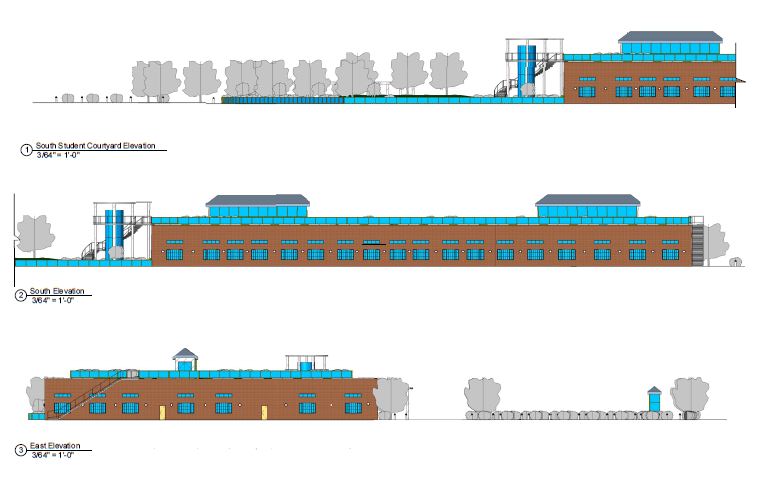

Interior Sections of the building

Finalized Site Plan

The site has a parking lot for 40 cars including 2 preferred parking spots, 3 handicap spots and 1 carpool spot. The green area in front of the school is made of drivable grass so it can be used as overflow parking. The roof garden on the 2nd story of the building has tiered mounds and shrubbery. The tiered effect is mimicked in the Student Courtyard.

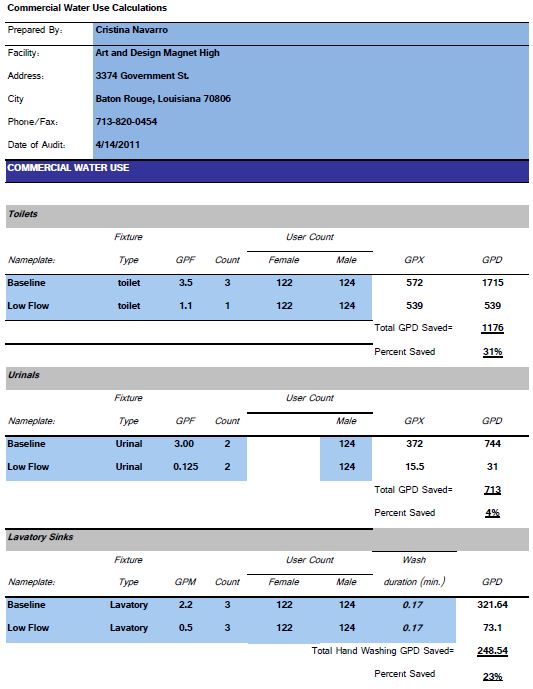

Water Efficiency

Site Plan Progression 4.7.11

Site Map Progression

Interior Sections in Progress

Sample Furniture Spec Sheet

I will make spec sheets for all major pieces in my building including lighting, furniture, materials, and technology integration.

Codes Compliance Diagrams

Below is a Circulation Diagram for Students, Faculty Supervised Areas, Faculty Only Areas and Areas open to the public.

The Diagram below denotes the fire exits, restrooms, window requirements and water fountain requirements.
